Plywood is widely used for van lining, van flooring, trailer flooring and vehicle interiors because it combines strength, relatively low weight and easy machining. The right plywood depends on where it is being used. A thin hardwood plywood may be suitable for van wall panels, while a thicker or phenolic-faced plywood is normally a better choice for a working floor.
Why is plywood used for van and trailer boarding?
Vehicle interiors are subjected to vibration, knocks, changing temperatures, moisture and regular loading and unloading. Plywood is well suited to this type of environment because its layered construction gives it good strength and dimensional stability while allowing it to be cut into relatively complex shapes.
For tradespeople, one of the biggest advantages is versatility. The same basic sheet material can be used to protect van walls, cover wheel arches, create a floor, form shelving or provide a base for racking and storage systems.
Plywood is also available in a wide range of thicknesses and sheet sizes. Plywood Etc stocks plywood in full-size and handy-sized sheets, making it possible to select a board around the requirements of the particular vehicle project.
See the full Plywood Etc plywood range for current sheet sizes, grades and thicknesses.
Which thickness of plywood is best for van lining?
Van wall lining normally does not need the same thickness as a vehicle floor. The objective is usually to provide a protective, rigid panel without adding unnecessary weight.
| Plywood thickness | Typical vehicle application | Main consideration |
|---|---|---|
| 4mm | Van wall panels, door panels, light lining and backing panels | Lightweight and relatively easy to cut and handle |
| 9mm | Heavier wall panels, shelving components and some flooring applications | Greater rigidity and impact resistance than thinner lining plywood |
| 12mm | Van flooring, heavier-duty panels and general vehicle fit-outs | Useful balance between rigidity, weight and strength |
| 18mm | Heavy-duty flooring, trailer floors and high-wear applications | Higher weight, but greater rigidity where the construction requires it |
These are practical starting points rather than universal engineering specifications. The correct thickness for a floor depends on the distance between supports, the construction of the existing floor, expected loads and how those loads are distributed.
For van wall lining, our 4mm Hardwood Plywood EN636-2 is suitable for applications including van interiors and built-in storage.
What plywood is best for van flooring?
Van flooring needs to cope with foot traffic, tools, equipment, boxes and repeated loading. The best material depends on the type of vehicle and how it is being used.
For a general-purpose van floor, plywood can provide a strong and practical base for a rubber floor, vinyl covering, carpet or other finished surface. The sheet should be properly supported and securely fixed to the vehicle floor or suitable substructure.
Where additional surface protection and grip are required, phenolic-faced plywood can be a useful alternative. The textured surface is designed for flooring applications and is easier to clean than an untreated timber face.
- 12mm Plywood for general vehicle and flooring applications.
- 9mm Trailer Flooring Buffalo Board for lighter-duty trailer, vehicle floor and platform applications.
- 18mm Trailer Flooring Buffalo Board for more demanding trailer flooring and deck applications.
What is Buffalo Board and is it suitable for trailer flooring?
Buffalo Board is a phenolic-faced plywood commonly used for floors, ramps, trailers and platforms. The textured face provides a practical anti-slip surface, while the phenolic coating helps protect the plywood from everyday wear and moisture.
Plywood Etc's 9mm Buffalo Board has a mesh-faced phenolic surface and smooth reverse and is intended for applications including trailer floors, ramps, platforms and vehicle floor lining. Check the current product specification before ordering, particularly where the board will be used for a load-critical application.
The 18mm version uses a thicker plywood construction and is aimed at more demanding floor and deck applications. A thicker board adds rigidity but also adds vehicle weight, so the specification should be selected around the actual application rather than simply choosing the thickest available sheet.
How thick should plywood be for a trailer floor?
There is no single plywood thickness that is suitable for every trailer floor. The correct specification depends on the trailer's construction, support spacing, payload, wheel loads and how the floor is fixed.
For lighter-duty applications, 9mm plywood may be appropriate where the underlying structure provides adequate support. For more demanding trailer floors, 12mm or 18mm plywood may be considered depending on the design and loading conditions.
Do not select a floor thickness solely because a particular thickness is commonly sold. If the trailer will carry concentrated loads, machinery, plant or heavy equipment, the floor should be assessed against the expected loading and support arrangement.
For heavy or specialist applications, the trailer manufacturer or a suitably qualified engineer should be consulted before choosing the replacement floor specification.
Can you use marine plywood for a van or trailer?
Marine plywood can be used where moisture resistance is an important consideration, although it is not automatically the best choice for every vehicle floor.
BS1088 marine plywood is manufactured for demanding moisture environments and uses waterproof adhesive and high-quality veneers. It can be useful for vehicle projects where moisture exposure is a concern, particularly when the board edges and cut surfaces are properly protected.
Marine plywood should not be described as completely waterproof. The timber can still absorb moisture, particularly through exposed edges and damaged surfaces.
See the Plywood Etc Marine Plywood range for current products and sizes.

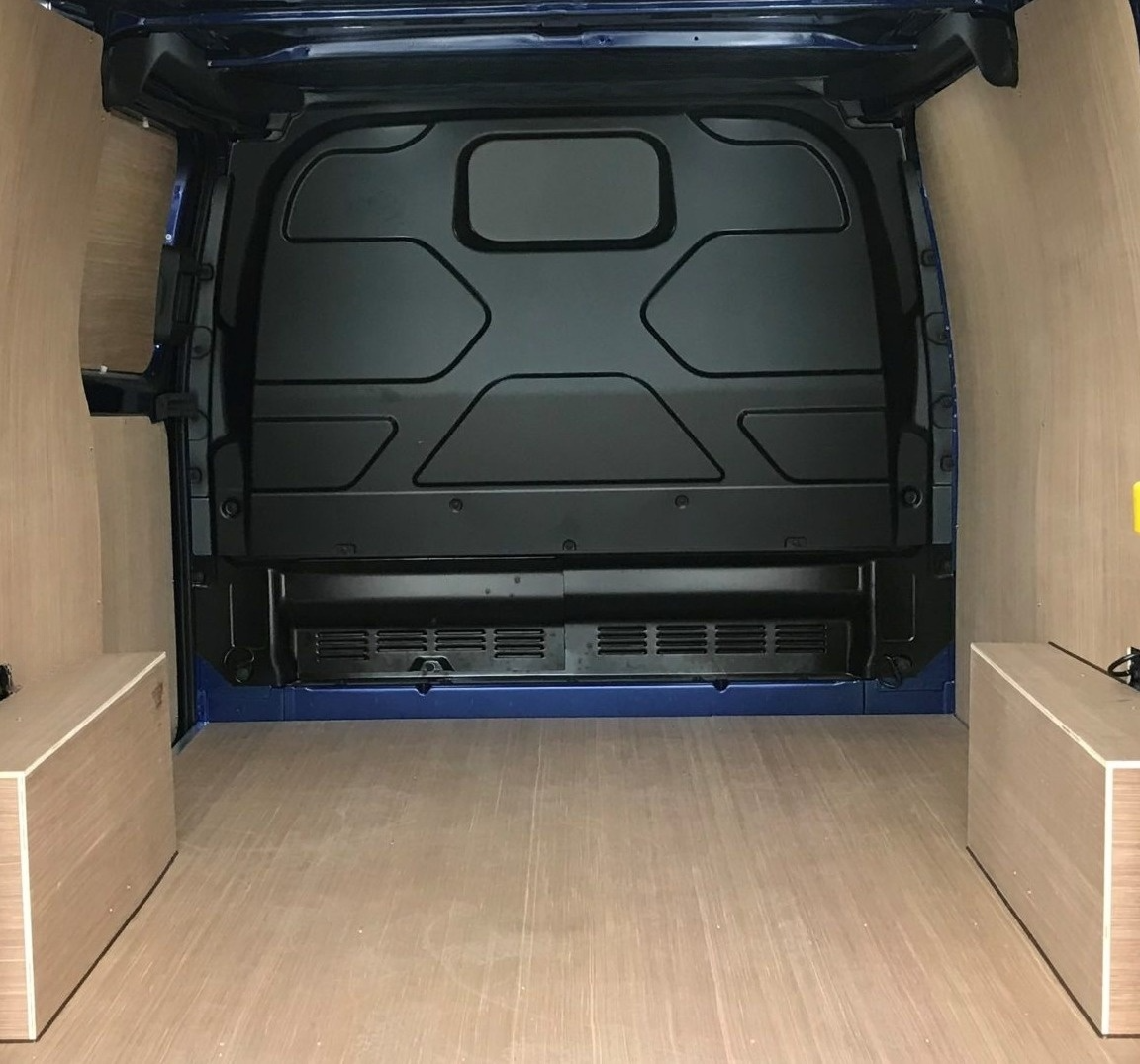

How to board out a van with plywood
A professional-looking van lining job starts with accurate templates. Van interiors are rarely completely flat, so measuring directly from the vehicle and transferring those measurements to the plywood can result in poorly fitting panels.
1. Remove existing panels
Remove old lining panels, trim and fittings where necessary. Check the vehicle structure and identify existing fixing points that can be reused.
2. Make cardboard templates
Cardboard or hardboard templates are useful for complicated panels around wheel arches, doors and structural ribs. Check the template against the vehicle before transferring it to the plywood.
3. Transfer the template to the plywood
Mark the plywood carefully and allow for the position of trims, fasteners, access panels and other fittings. Measure twice before making permanent cuts.
4. Cut the plywood
A circular saw, jigsaw or other suitable woodworking saw can be used depending on the shape and thickness of the board. Use appropriate eye, hearing and dust protection when cutting sheet materials.
5. Pre-drill and fix the panels
Pre-drilling can help reduce splitting and makes it easier to position the panel accurately. Use suitable fasteners for the vehicle structure and the thickness of the plywood.
Avoid fixing into areas containing wiring, fuel systems, brake lines or other vehicle components. Existing manufacturer fixing points are often preferable where they provide a suitable attachment location.
6. Seal exposed edges
Cutting exposes the plywood's internal veneers. These edges can absorb moisture more readily than the face of the board, so exposed edges should be sealed where the application is likely to encounter moisture.
How to protect plywood used in vans and trailers
The treatment required depends on the type of plywood and where it is being installed.
- Interior van wall lining: sealing may be less critical in a dry, enclosed vehicle, although exposed edges should still be protected where condensation or water ingress is possible.
- Van flooring: protect exposed edges and areas around fixings where moisture can enter.
- Trailer flooring: phenolic-faced boards can reduce surface wear and simplify cleaning, but cut edges still require attention.
- Exterior or frequently wet applications: select a plywood grade appropriate for the environment and protect cut edges and exposed surfaces.
Plywood and vehicle weight
Weight is an important consideration when boarding a commercial vehicle. Adding plywood to the walls, doors, floor, shelving and storage systems can result in a significant increase in unladen weight.
A heavier board is not automatically a better board. The aim is to select a material that provides the required performance without adding unnecessary weight.
Before fitting a complete lining or flooring system, consider the vehicle's payload and the combined weight of the plywood, racking, tools, equipment and normal cargo.
Does plywood flooring help secure loads?
A plywood floor can provide a durable and stable load surface, but the floor material itself should not be treated as a substitute for proper load securing.
The UK's Driver and Vehicle Standards Agency provides guidance covering the safe loading and securing of goods carried in vans and trailers. Its guidance explains the importance of suitable restraints, attachment points and load distribution.
Read the GOV.UK guidance on securing loads on HGVs, goods vehicles, vans and trailers before carrying commercial loads on public roads.
Common mistakes when boarding a van or trailer
- Choosing plywood by thickness alone: consider grade, construction, support spacing and expected loading.
- Using flooring plywood for every application: a heavy phenolic-faced board can add unnecessary weight when used for wall lining.
- Ignoring cut edges: exposed plywood edges are more vulnerable to moisture.
- Not making templates: this often results in gaps and poorly fitting panels.
- Overloading the vehicle: include the weight of the complete lining, floor, racking, tools and cargo.
- Relying on the floor to secure cargo: use appropriate restraints and vehicle attachment points.
- Fixing without checking behind the panel: always consider wiring, fuel lines, brake components and other vehicle systems.
Which plywood should I choose?
| Application | Suitable starting point | Why |
|---|---|---|
| Van wall lining | 4mm hardwood plywood | Lightweight, easy to cut and suitable for interior panels |
| Heavy-duty van lining | 6mm–9mm plywood | Greater rigidity and impact resistance |
| General van flooring | 12mm plywood | Useful balance between rigidity and weight where adequately supported |
| Trailer flooring | 9mm–18mm phenolic-faced plywood | Hard-wearing surface and practical grip, with thickness selected according to loading |
| High-moisture application | Marine or suitable exterior plywood | Improved resistance to moisture when correctly specified and protected |
Frequently Asked Questions
What is the best plywood for van lining?
4mm hardwood plywood is a practical starting point for many van wall-lining applications because it is relatively lightweight and easy to cut. Heavier-duty installations may require thicker plywood depending on the intended use.
What thickness plywood should I use for a van floor?
12mm plywood is a common starting point for general van flooring, but the correct thickness depends on the floor construction, support spacing, payload and expected loads. Heavier or less-supported floors may require thicker material.
Is 9mm plywood suitable for trailer flooring?
9mm plywood can be suitable for lighter-duty trailer flooring where the floor is adequately supported. For heavier loads or wider unsupported spans, a thicker board may be more appropriate.
Is 18mm plywood too thick for a van floor?
Not necessarily. 18mm plywood can provide additional rigidity, but it is substantially heavier than thinner boards. The additional weight should be justified by the vehicle's construction and expected loading.
Can I use marine plywood for van flooring?
Yes. Marine plywood can be used where moisture resistance is important. However, it is not completely waterproof and exposed edges should be properly protected.
What is Buffalo Board?
Buffalo Board is a phenolic-faced plywood with a textured surface commonly used for trailer floors, ramps, platforms and vehicle flooring. The coated face provides a hard-wearing surface with practical grip.
Does plywood need to be sealed in a van?
It depends on the application. Dry internal wall lining may need less protection than flooring exposed to water, cleaning or condensation. Exposed cut edges should generally be protected where moisture is likely.
Can plywood be used for campervan conversions?
Yes. Plywood is widely used for campervan floors, wall panels, furniture, storage and cabinetry. Thickness should be selected according to the particular component and the need to control vehicle weight.
How do I calculate how much plywood I need?
Measure the total floor, wall or panel area and then plan the cuts around the available sheet sizes. Remember to account for the shape of wheel arches, doors and other vehicle features. Using templates can reduce waste.
Does plywood make a van heavier?
Yes. Every plywood panel adds weight, and a complete lining system can add significantly more once flooring, shelving and racking are included. Consider the total installed weight against the vehicle's payload.
Shop plywood for van and trailer projects
Plywood Etc supplies a wide range of plywood in full-size and handy-sized sheets, including hardwood plywood, marine plywood and phenolic-faced trailer flooring.
If you are unsure which thickness or plywood grade is suitable for your vehicle project, contact the Plywood Etc team before ordering. For specialist or load-critical applications, always check the requirements of the vehicle, trailer or equipment manufacturer.
Information in this guide is intended as general guidance for selecting sheet materials. Vehicle and trailer flooring requirements vary by construction, loading and manufacturer specification. Always check the relevant vehicle, trailer or equipment requirements before installation.
